Turn Table System for transfer or movement of various type of Vials, Bottles, Jars on any Powder Filling, Liquid Filling or Tablet Bottle Packing Lines. Turn Table can be used with any machine for collection or feeding of products and also used to change the total line direction for "L" shape or "U" shape movement of line or for Linear movement of line but it can works as a buffer system, If any of machines stop during the online operation, Turn Table can collect the outfeed product from machine or similarly can feed the products to machine without interrupting the complete line. Turn Table is available in various diameter as per detail mentioned below of 600, 750, 900 or 1200 mm as per customers requirement.

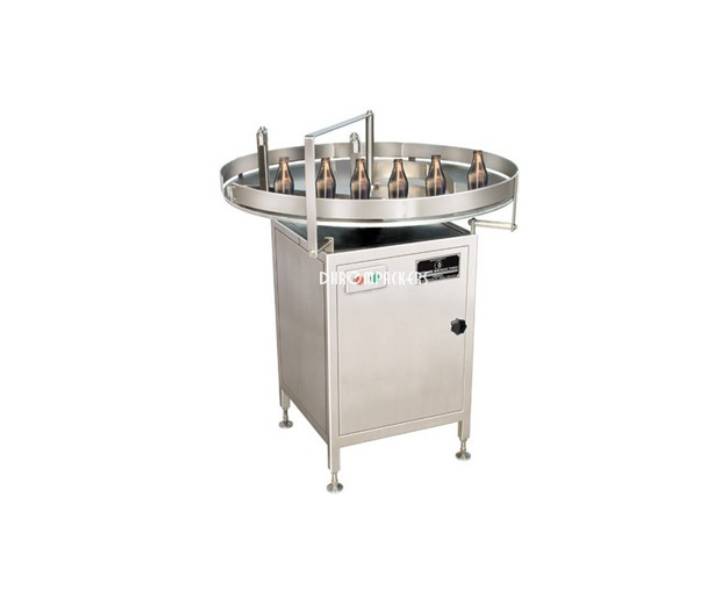

Turn Table Machine

  • TT-24 : 600mm Diameter
  • TT-30 : 750mm Diameter
  • TT-36 : 900mm Diameter
  • TT-48 : 1200mm Diameter

Most commonly used size of Turn Tableus 900mm Diameter. Turn Table frame is made from S.S. 304 Frame Structure duly supported with With heavy duty M.S. Material "C" profile for extra Support for Top Plate and Gear Box. Machine with S.S.304 Enclosures, Aluminimum Top Plate having Stainless Steel Cladding. Turn Table with A.C. Variable Frequency Drive System for smoother Start and Stop opetation for unstable products as well as speed control.
